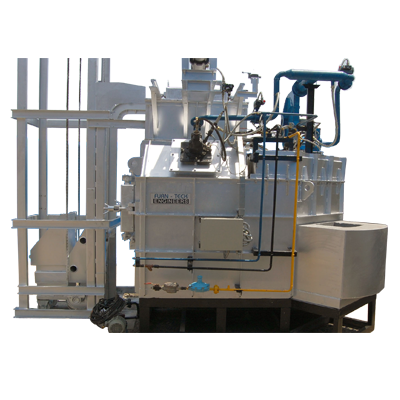

Direct Baleout Type

These furnaces are suitable for HPDC shops and to be attached directly to HPDC machines and much suitable for DIECASTING units which cater several alloys.

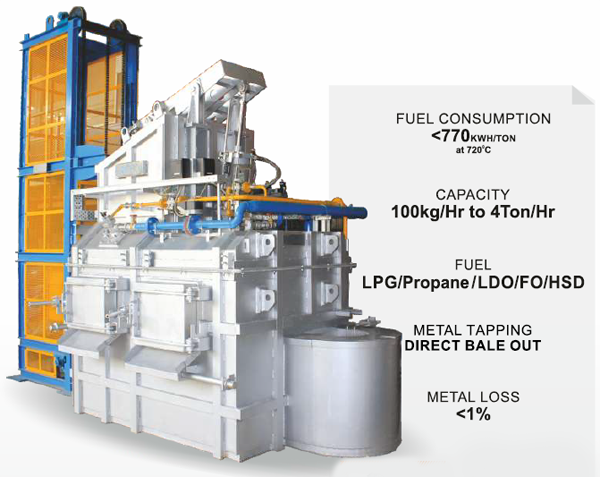

General performance specs

Fuel Consumption : 770KWH/ton at 7200C Tap out temperature
Metal loss : <1%
Capacity : 100kg/hr to 4 Ton/Hr. HIGHER CAPACITIES CAN BE DESIGNED ON REQUEST
Loading : By Auto charger
Metal Tapping : By direct bale out
Fuel : LDO/FO/HSD/LPG/Propane
Direct Baleout Type

Distinct benefits of DIORECT BALEOUT TYPE TOWER FURNACES
1.Melting and Holding is done in single furnace.
2.Twin chamber design improves efficiency and flexibility of furnace.
3.No additional holding furnace is required for HPDC machine.
4.No Crucible required hence NO RECURRING COST OF CRUCIBLE.
5.Continuous production increases productivity of machine.
6.No blind corners in refractory which allows easy and thorough cleaning of furnace
7.Temperature control within 50C reduces rejection.

We are Manufacturers and our setup is situated at Talawade, Pune, ( Maharashtra, India )
