Crucible Type Melting Furnace

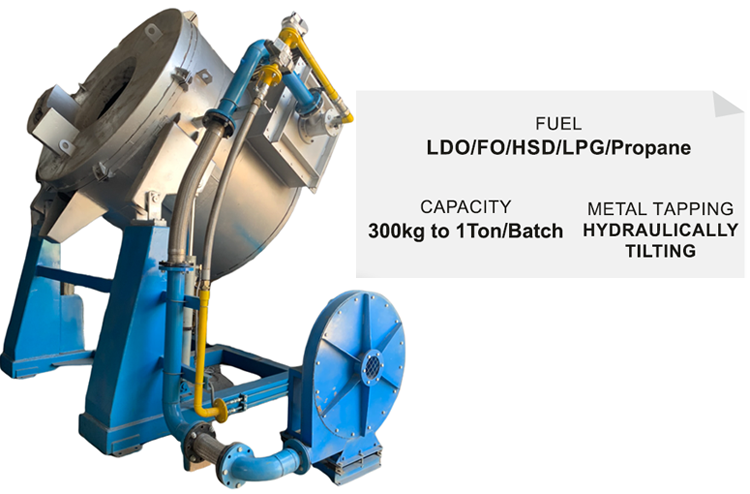

LIP Tilting Crucible Type Melting Furnace

LIP Tilting Crucible Type Melting Furnace, Crucible Type Melting Furnace

These furnaces are suitable for HPDC / GDC shops where production rates are very low or metal quality is extremely crucial and only electric melting is requires. Being Batch type indirectly heated furnaces , the furnaces have comparatively higher energy consumption. Recurring cost of CRUCIBLE is also one of the concern since it drastically affects production in case of sudden failure.

Distinct benefits of FURNTECK's SKLENNER / Reverbratory Furnaces

  1. Several options of heating systems available ( Electrically heated / Fuel fired ).
  2. Electrically heated system is equipped with verticle coil type heaters which can be removed and replaced without cooling down the furnace
  3. Superior insulation ensures higher thermal efficiency.
  4. Metal tapping is possible through Direct Baleout / HYDRAULIC LIP TILTING.

Fuel Consumption : 0.5Kw/Kg for melting at 7200CTap out temperature 12 Kw/Hr for Holding
Capacity : 200kg/Batch to 1000Kg/Batch
Loading : Manual
Metal Tapping : By Direct Bale out or Hydraulically Tilting mechanism
Fuel : ELECTRICALLY heated or with LDO/FO/HSD/LPG/Propane

APPLICATIONS

  1. Aluminium Die Casting
  2. Aluminium Sand Casting
  3. Aluminium Gravity Casting

DESIGN FEATURES

  1. Fuel fired / electrically heated options available
  2. High quality insulation resulting low thermal losses - high efficiency
  3. Special applications can be built to order

CONSTRUCTION

FURNTECK's crucible melting furnaces are of steel fabricated construction using plate and rolled sections. The furnace is lined with high temperature rated refractory, backed with calcium silicate insulating board.

TEMPERATURE CONTROL

Standard temperature control is by sensing Molten metal temperature through immersion thermocouple in a protective sheath which is shown on a digital display.

BURNER

The two stage packaged type burner is complete with built in fan, flame safety controls and electric ignition. The burner, when not operating, is protected against radiant heat from refractory by a thermostat activating the fan to maintain burner internals within acceptable temperature limits.

ELECTRIC RESISTANCE HEATING

Banks of electrical heating elements of nickel chrome alloy fitted in high quality bricks will be provided around the furnace. Option of silicon carbide heaters can be supplied and heaters can be replaced without removal of crucible.
